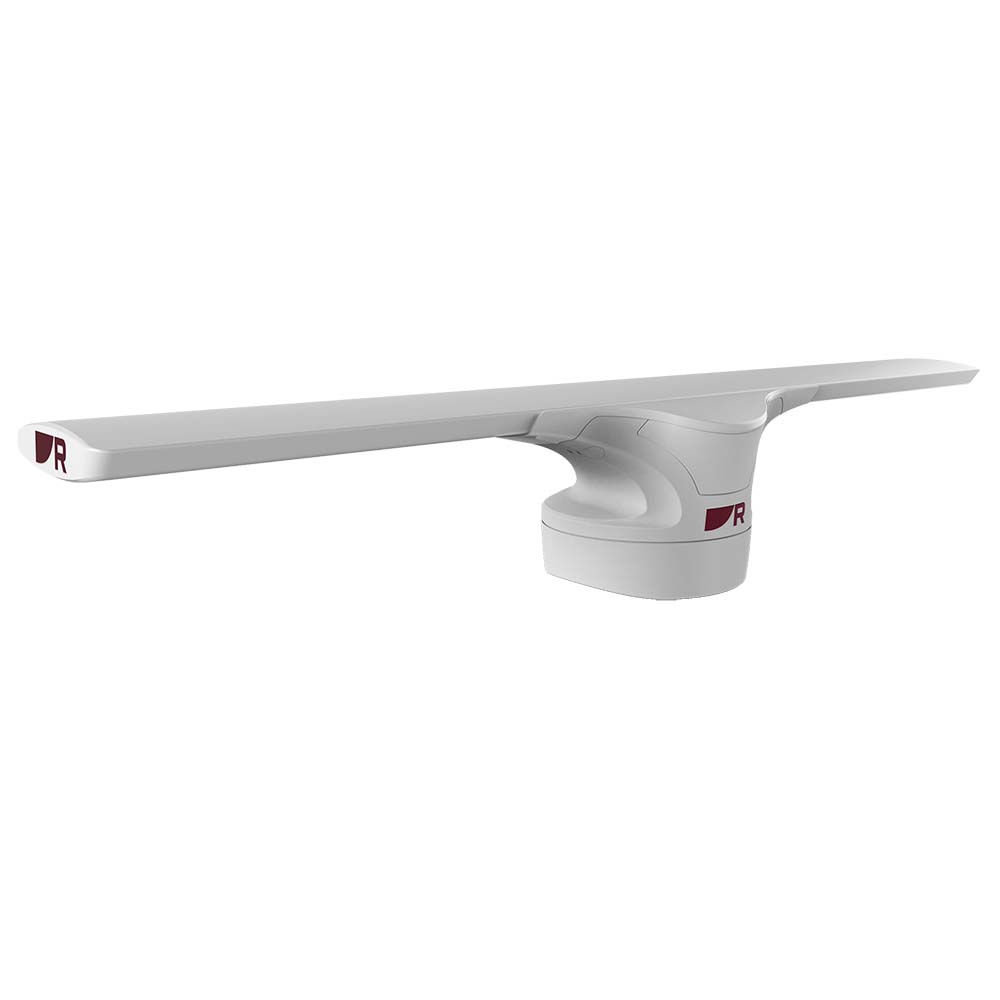

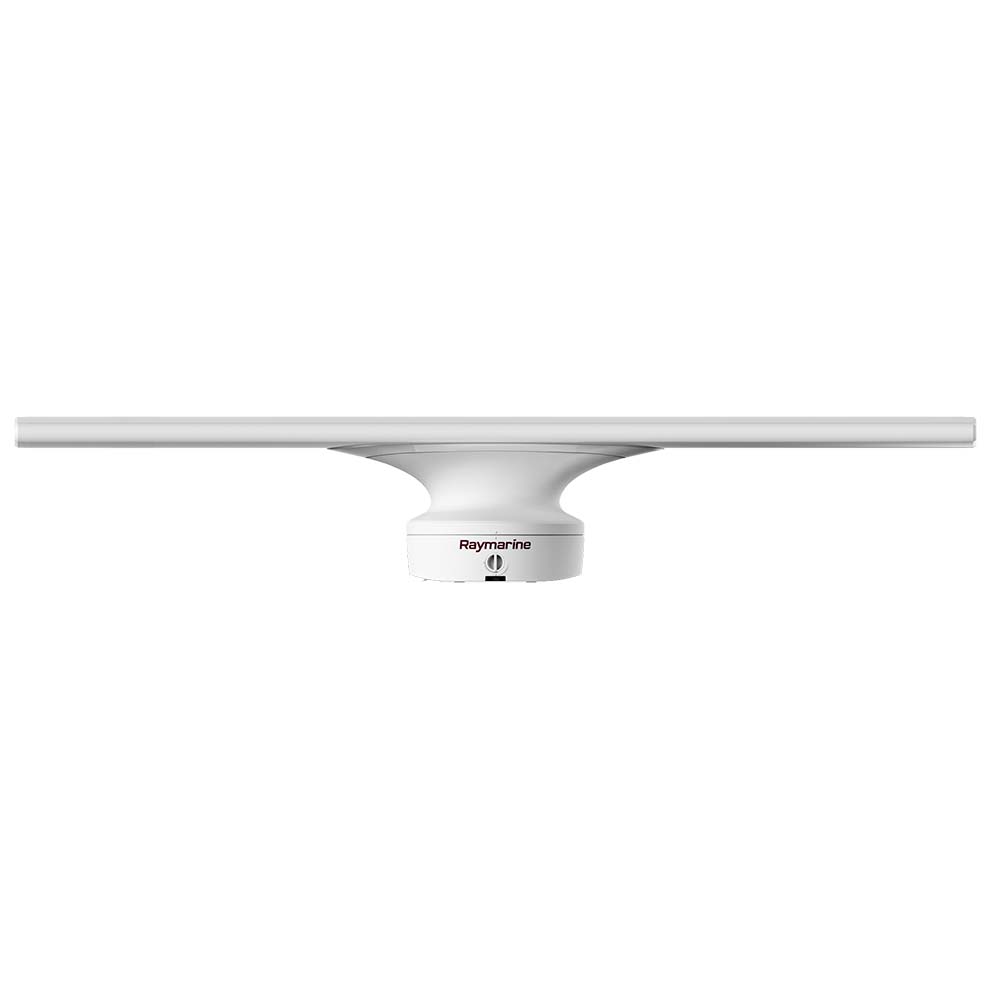

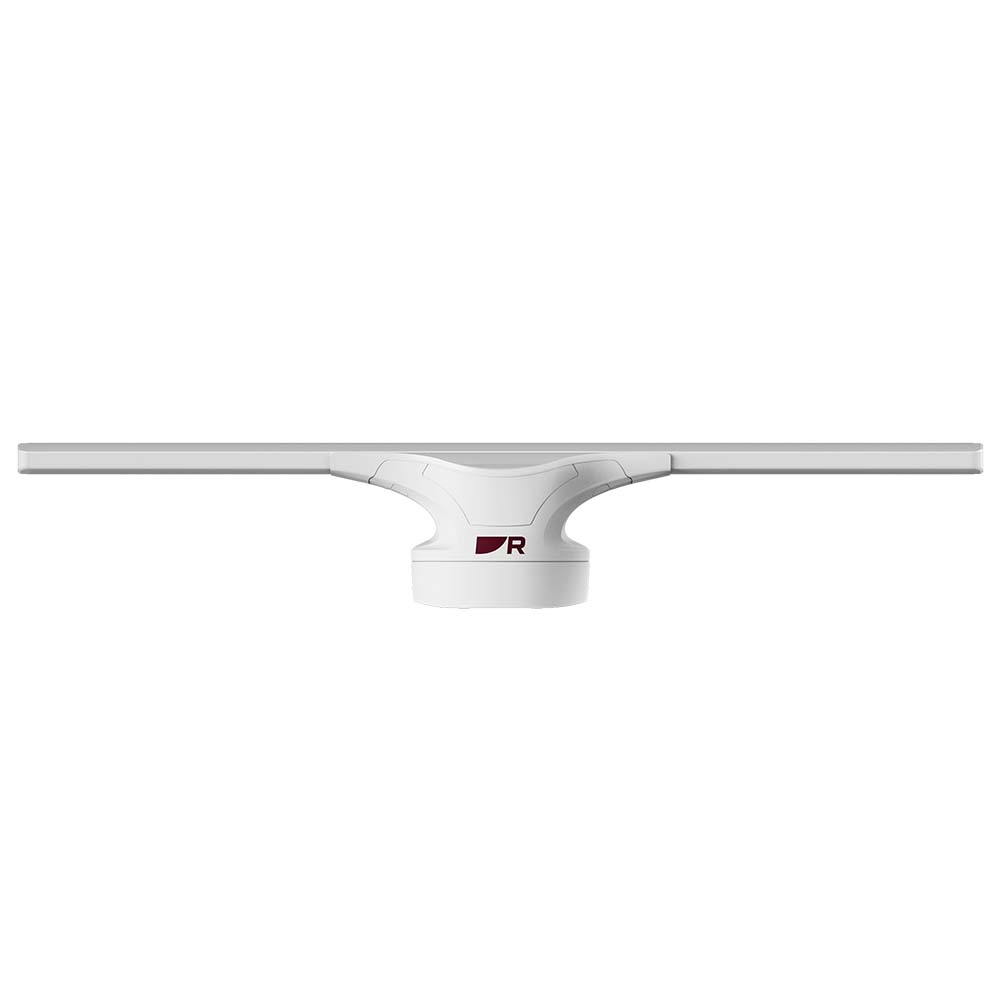

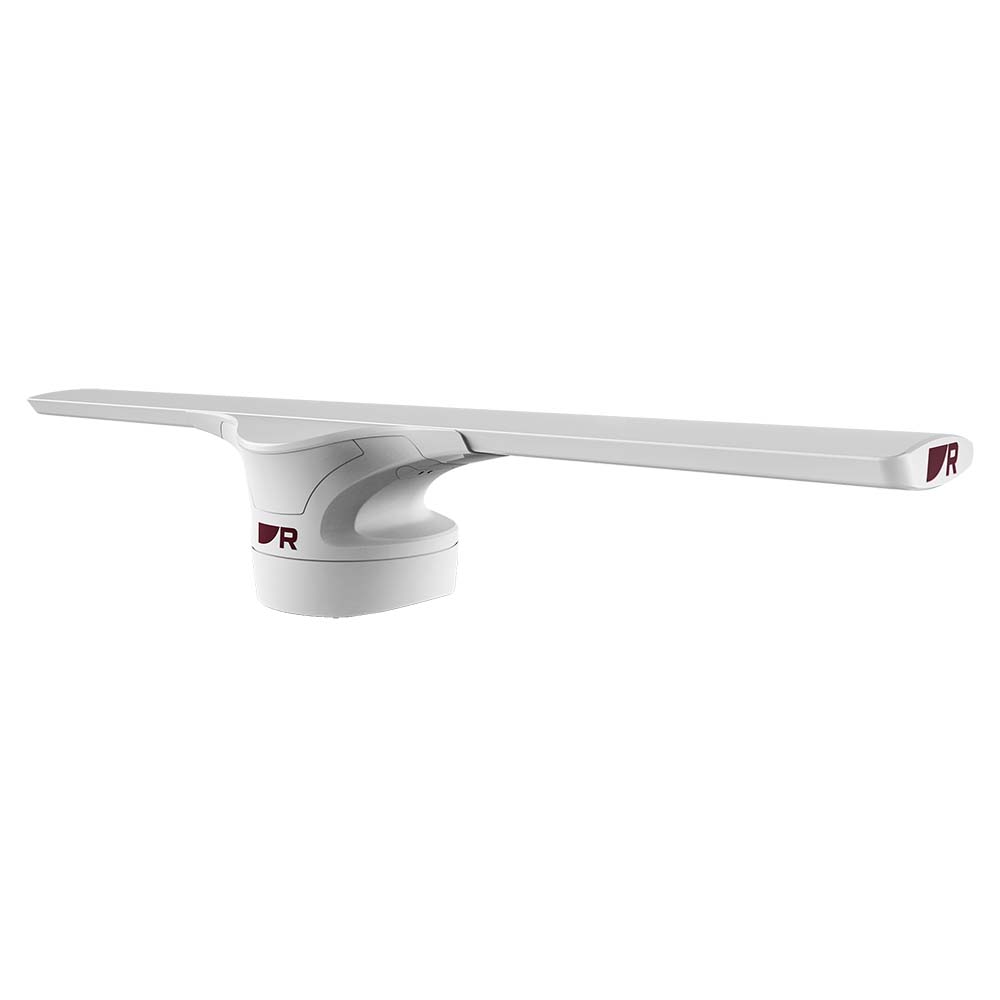

Cyclone Pro Radar 110W with 6' Open Array & 15M Cables
SOLID-STATE OPEN ARRAY RADAR
The ultimate expression of design, rugged performance, and unmatched situational awareness, Cyclone solid-state open-array radars give mariners the confidence to tackle the harshest conditions, gain the upper hand in the hunt for fish, and navigate busy waterways with confidence.
Cyclone radars deliver superior target separation and long-range resolution using CHIRP pulse compression and Raymarine beam sharpening technology. Each model features innovative detection capabilities, including Cyclone Bird Mode, RangeFusion™ technology, and high-speed 60 rpm imaging.
CUTTING EDGE DESIGN
- Aircraft-wing-inspired design is engineered for extremes with a best-in-class 100-knot wind rating and designed to meet the commercial-grade IEC 62388 standard for shipborne radar
- At 13.1 inches (335 mm) tall, Cyclone’s lower profile allows greater flexibility of boat architecture and more adaptable installation options.

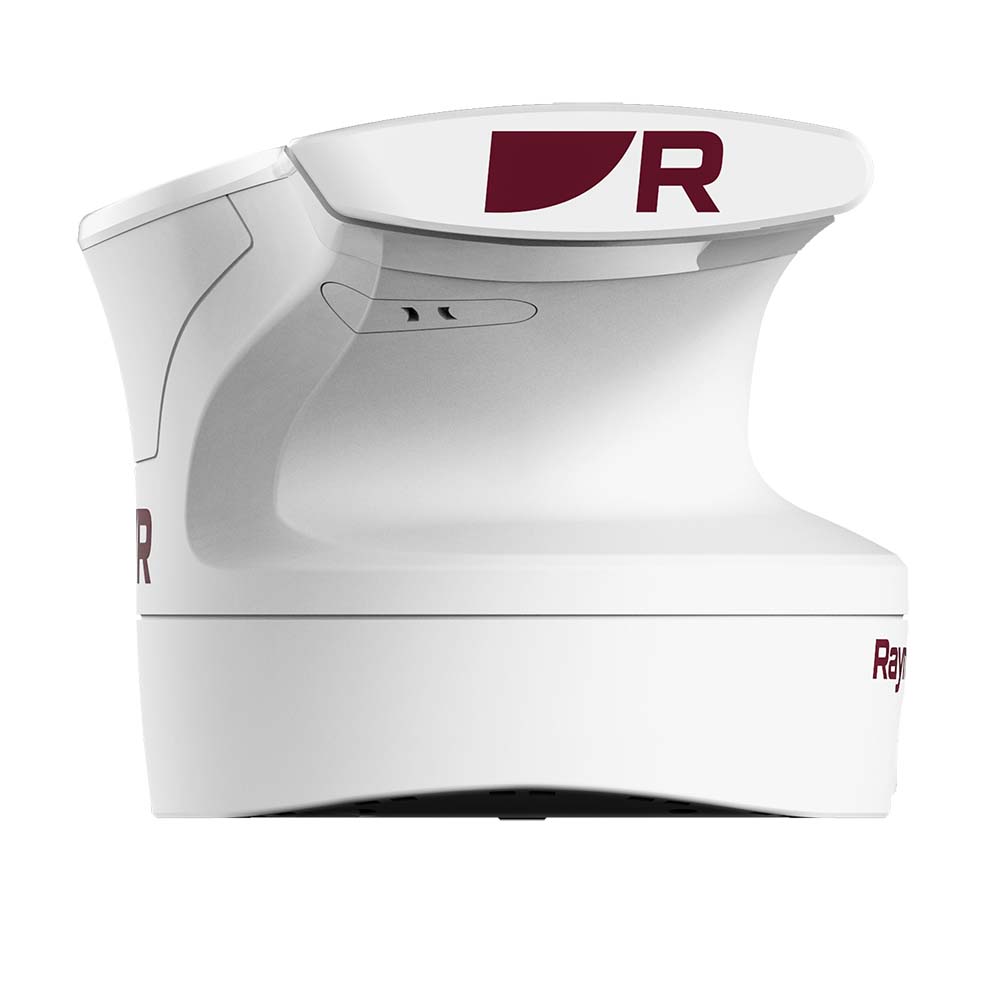

- Innovative pedestal design conceals cable connections for a cleaner installation
THE ULTIMATE SITUATIONAL AWARENESS
- Fast 60 RPM rotational speed delivers 360 degrees of awareness and accurate target tracks in real-time
- Doppler target tracking simplifies the interpretation of dangerous and safe targets for added safety
- Professional grade ARPA target tracking. Cyclone automatically tracks up to 50 targets using the same advanced ARPA technology trusted by the United States Coast Guard.
- RangeFusion™ technology combines short and long pulses into the single high clarity radar image, delivering exceptional short-range and long-range targets simultaneously.
- Performance tuned for locating sea birds
- Enhanced Cyclone Bird Mode using CHIRP pulse compression technology
6' OPEN ARRAY SIZE
- 6' option delivers superior target separation and range detections
In the Pedestal Box E70621:
- Pro Pedestal
- M10 Stud x4
- M10 Nut x8
- M10 Spring Washer x4
- M10 Plain washer x4
- Mounting gasket
- Mounting template
- Radar data cable 15m
- Power cable 15m
- Cable clamp
- VCM100 mounting screw x2
- Cable clamp mounting screw x3
6' Antenna Box E70630:
- Threaded alignment guide
- Spring washer
All Axiom displays require the forthcoming LightHouse Hvar 3.16 software update for complete Cyclone compatibility. LightHouse Hvar 3.16 will be available in early November 2021.
- Array Size (Inches): 6FT
- Power - Output: 110W
- Range - Max (Miles): 96NM
- Box Dimensions: 2"H x 12"W x 12"L WT: 97 lbs
